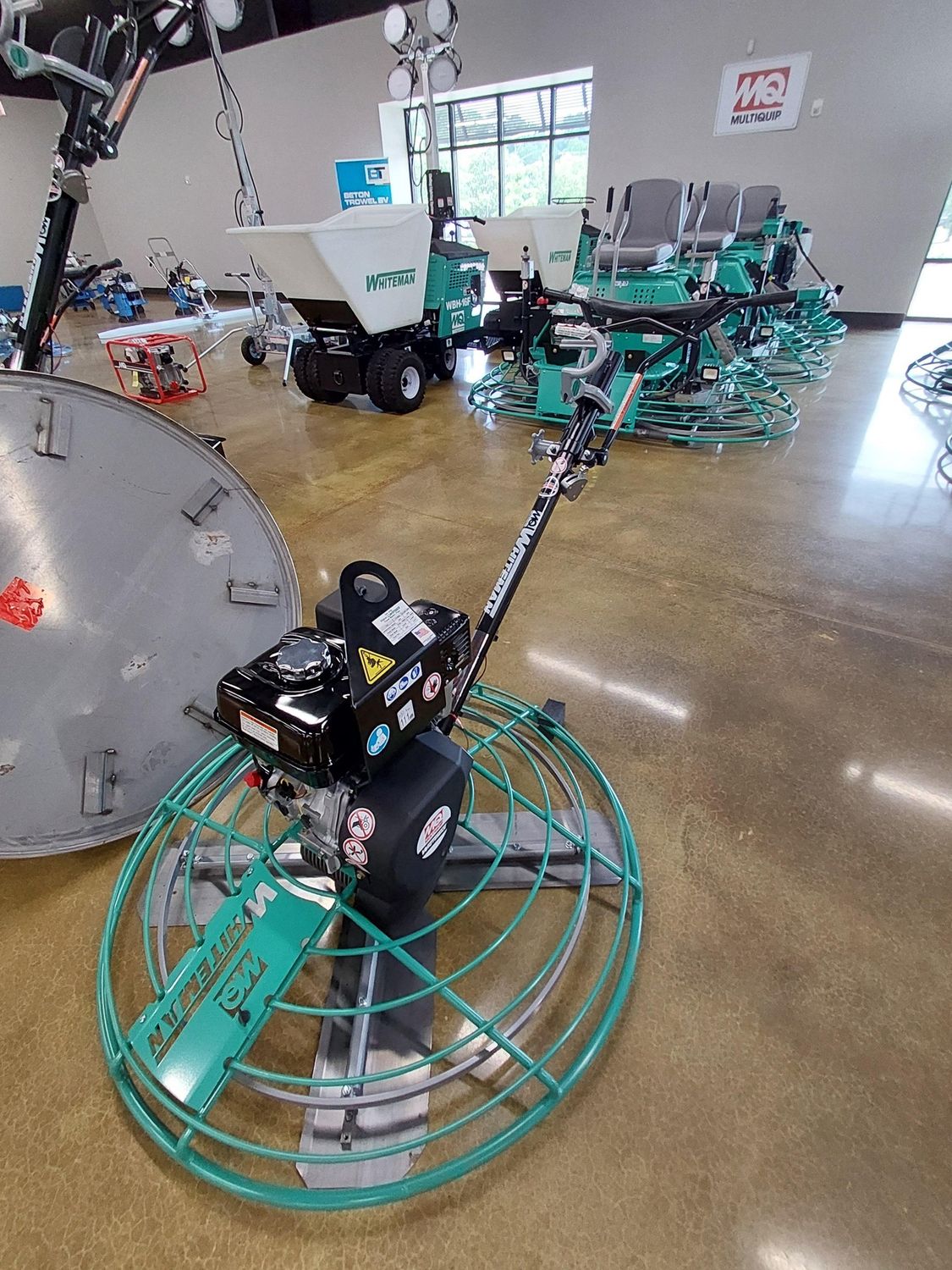

MultiQuip 46" Walk Behind Trowel w/GX270 B46H90

$4 899.00
Product Details
Brand: MultiQuip
Weight: 285.00 lbs

Multiquip B46H90 Walk Behind Trowel

The Multiquip B46H90 Walk-Behind Trowel is a dependable choice for flatwork concrete projects of any size. It features a 46-inch guard ring, an 8.5 HP Honda GX270 engine, and an adjustable blade speed from 60 to 130 rpm for smooth, high-performance results. Built with quality components and a lightweight frame, it’s backed by a 1-year limited warranty for added peace of mind. Get yours today.

Standard Handle Included.

Features:

4-blade, 46-inch, Honda GX270, 60-130 RPM, 8.5 HP

  • Features a robust 4 blade, 46 inch configuration, powered by an 8.5 HP Honda GX270 engine, delivering a working speed of 60 - 130 RPM

46-inch (1170mm) guard ring diameter

  • Features a 46-inch (1170 mm) guard ring diameter, suitable for large-area finishing applications.

Center mount lifting bale included

  • Includes a center-mount lifting bale for safe and easy hoisting and movement of the unit.

Front access panel provides quick access to trowel arms and blades

  • Features a front access panel that allows for quick and easy access to the trowel arms and blades for maintenance and replacement.

Spider and thrust collar assembly design simplifies routine maintenance

  • Features a specialized spider and thrust collar assembly design that significantly simplifies routine maintenance procedures.

Trowel covered by 1-year limited warranty

  • The trowel is protected by a 1-year limited warranty, providing assurance and covering parts against manufacturing defects.

Gearbox features top quality components & large oil capacity for years of trouble-free performance

  • The gearbox features top-quality components and a large oil capacity, ensuring years of trouble-free performance and maximum reliability.

Optimally balanced for smooth finishing

  • Features an optimally balanced design, ensuring smooth, precise finishing for superior results.

Standard or QuickPitch Handle available

  • Offers versatile control options: Available with either a Standard handle or the advanced QuickPitch handle mechanism.

Unit Specifications

  • Clutch Type Centrifugal
  • No. of Blades 4
  • Ring Diameter 46 in 1168.4 mm
  • Rotor Speed 60-130 RPM
  • Handle Options SXH
  • QXH

Dimensions & Weights

  • Overall Length 75 in 1910 mm
  • Overall Width 46 in 1170 mm
  • Overall Height 41 in 1044 mm
  • Operating Weight 277 lb 125.6 kg
  • Shipping Weight 285 lb 129.2 kg

Engine Specifications

  • Engine Make/Model Honda GX-270
  • Start Method Recoil
  • Engine Power 8.5 HP 6.3 kW
  • Engine RPM 3600
  • Fuel Type Gasoline
